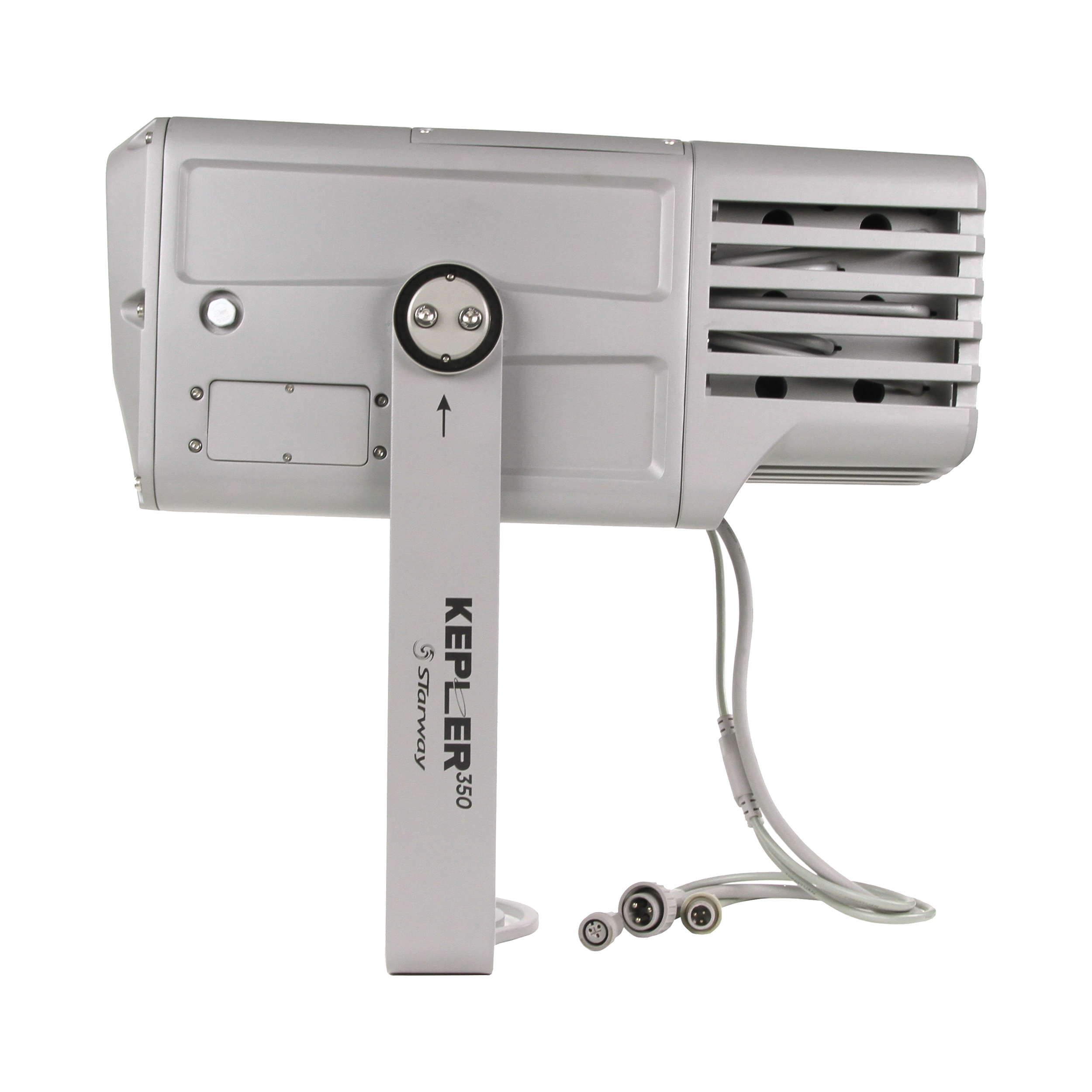

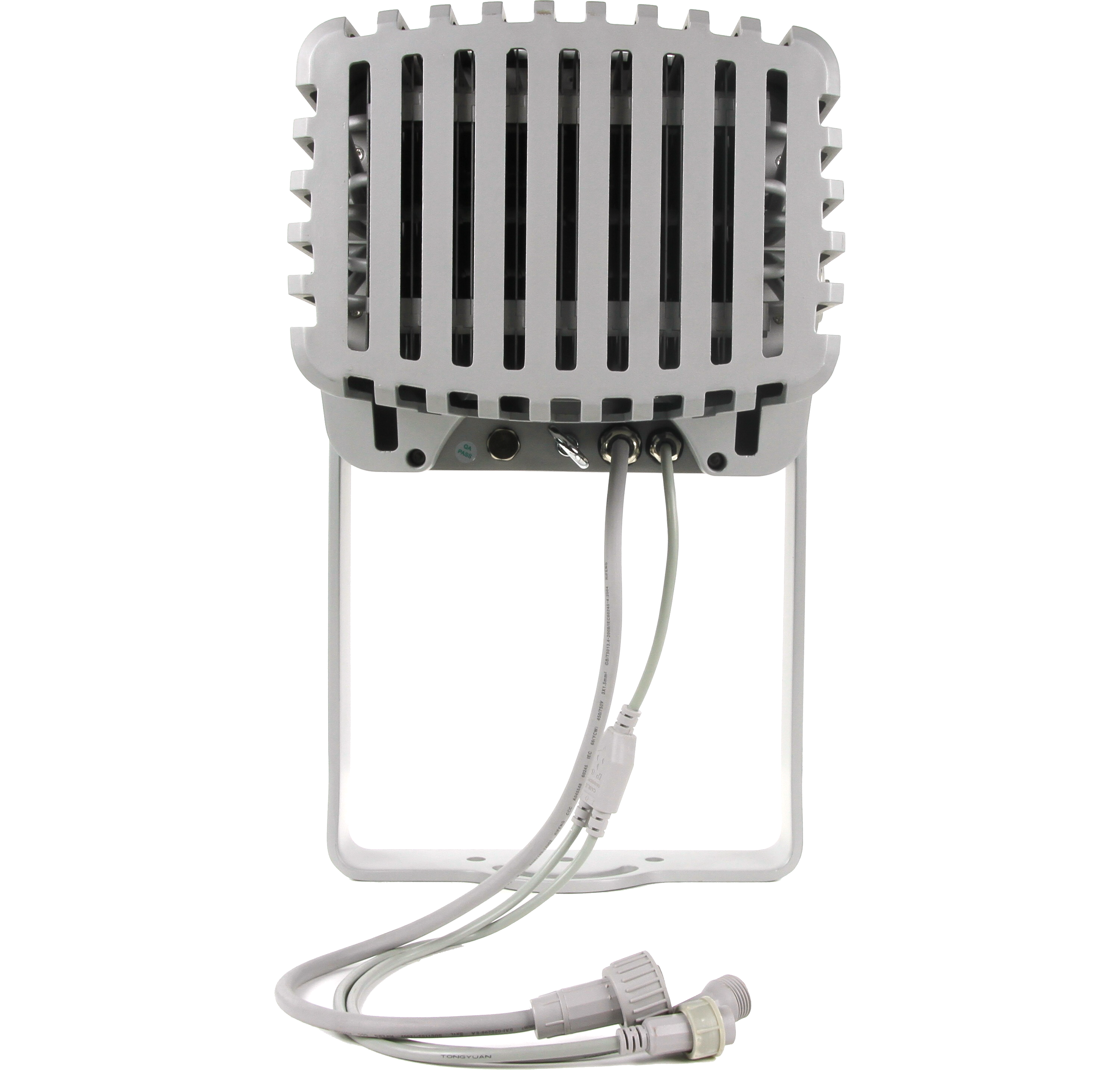

KEPLER 350

Projection light

Kepler 350 is an IP66 gobo projector equipped with 1 white LED of 350W 7000°, perfect for any outdoor projection use. Thanks to the different gobo effects, CMY, prism, frost and with a 8° to 40° zoom, the spotlight achieves a very interesting short and long-distance projection. Thanks to its IP66 waterproof rating, Kepler 350 is ideal for a wide use in theme parks, commercial centers, architectural buildings, historical monuments, etc.

IP 66

IP66 certified, the projector perfectly supports a permanent outdoor installation

Opening angle

Opening angle 8 to 40°

Effects

7 rotating gobos + white wheel, 7 colors + white wheel, CMY, animation wheel

Wireless DMX

Wireless DMX by Wireless Solution

350W 7000° LED

Equipped with a white LED of 350W 7000°, perfect for any
outdoor projection use.

Zoom

Opening angle of 8 to 40° to perfectly adapt the projection to any situation.

Gobos

Kepler 350 has a 7 rotating gobos + white wheel.

Animations

Kepler 350 has an animation wheel.

Wireless DMX

Control your projector with wireless DMX thanks to the integrated Wireless Solution module.

Colors

Kepler 350 has a 7 colors + white wheel and CMY.

Prism

Enhance your projection effects with the 3-facet prism.

Frost

Dose with subtlety your light projection thanks to the frost filter.

RDM

Thanks to the RDM function, the projector instantly gives feedback about its working condition, which simplifies the set-up and installation operations.

IP66

IP66 certified, the projector perfectly supports a permanent outdoor installation.

Environment

The projector supports outdoor temperatures from -20° C to 45° C.

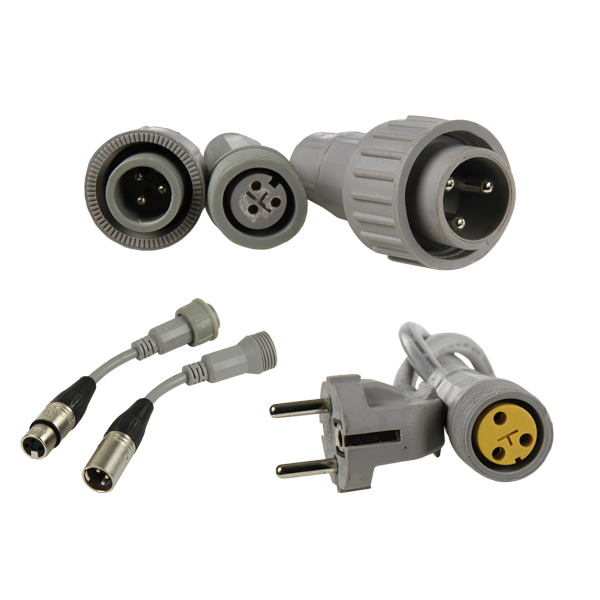

IP connector

The DATA and Power connection cables are fitted with waterproof connectors for outdoor use.
Read more...

Kepler 350 en vidéo

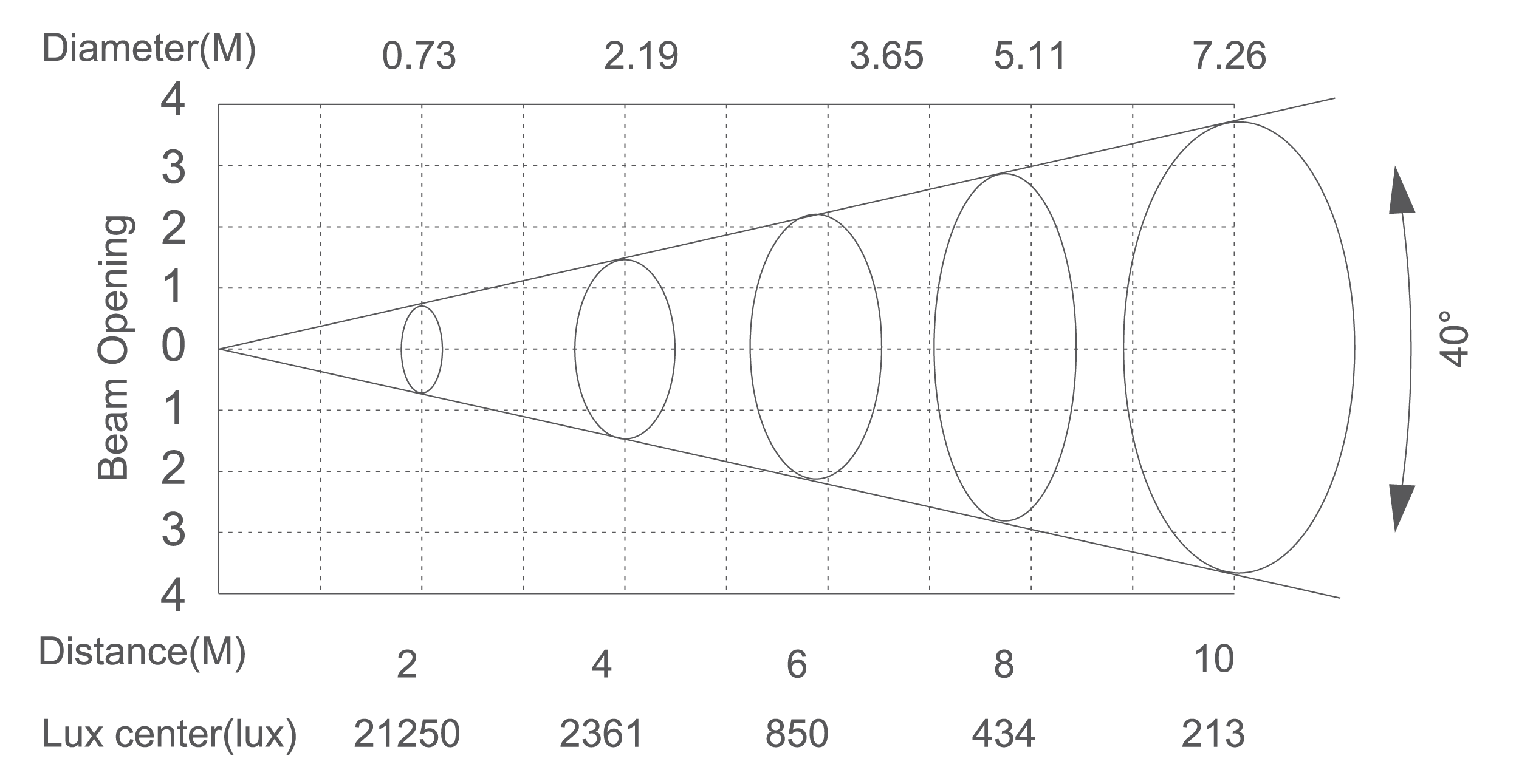

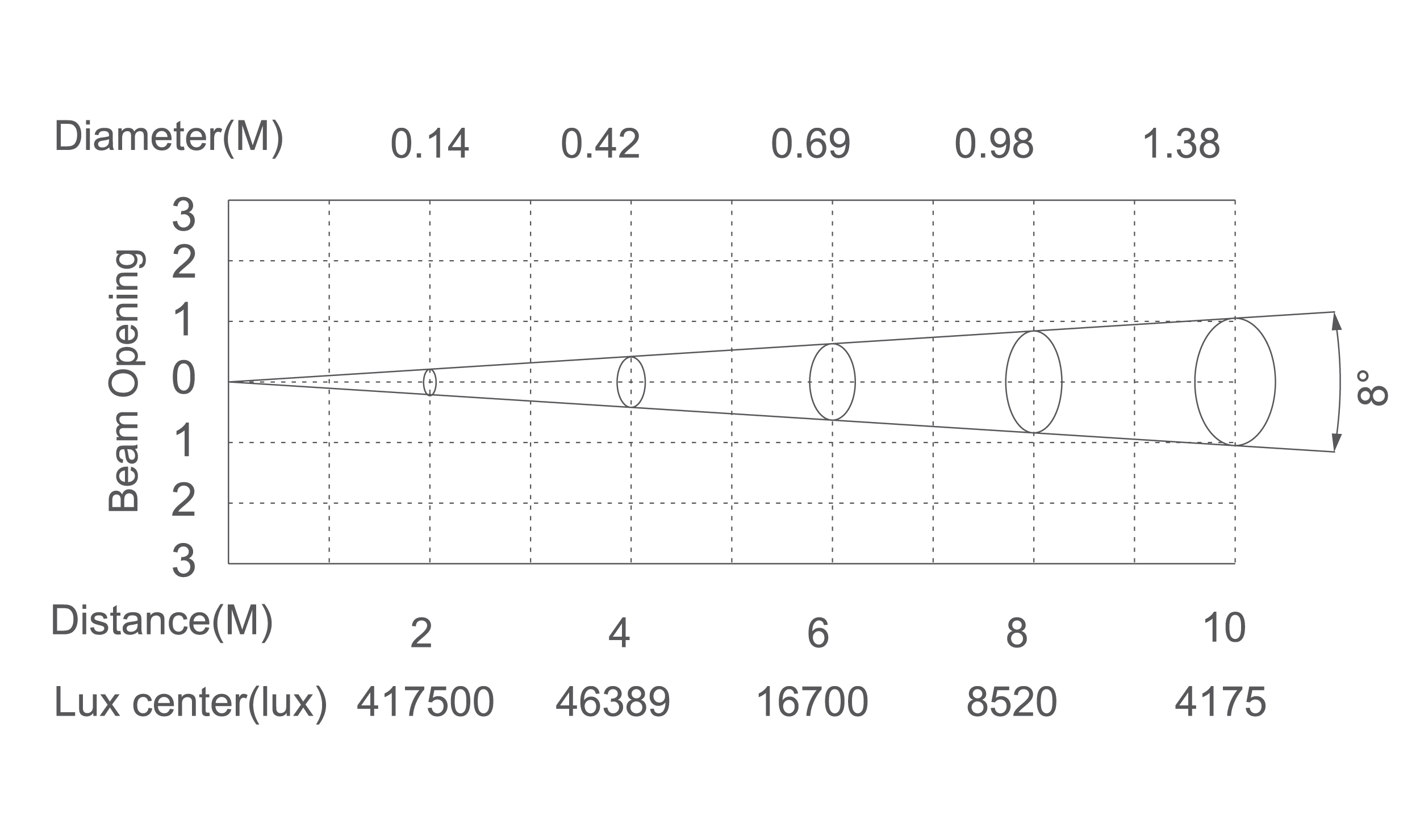

Photometric data

Gobos & Colors

Connection

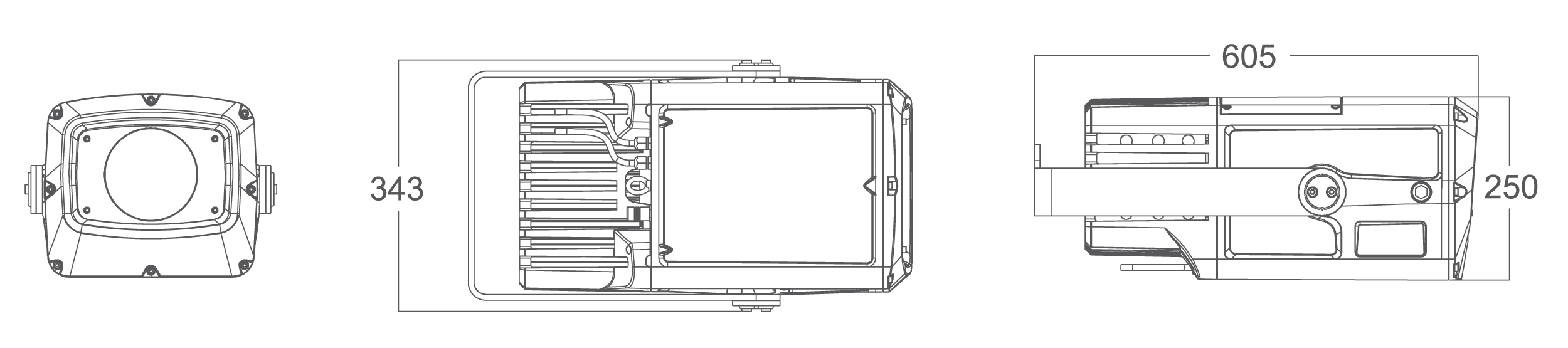

Dimensions

Specifications

Reference
900435
LEDs
350 W white LED
Max. Power
380 W
Opening angle
8 to 40°
Photometric data
16 000 lux (8° at 5 m)
Control
Wireless DMX by Wireless Solution

Features

7 rotating gobos + white wheel and animation wheel
7 colors + white wheel and CMY
3-facet Prism and Frost
